Carbon Pro Series

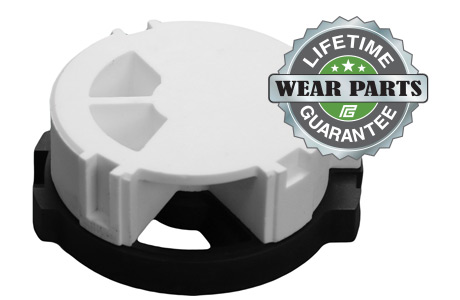

Ceramic Discs
Valve Head Front View

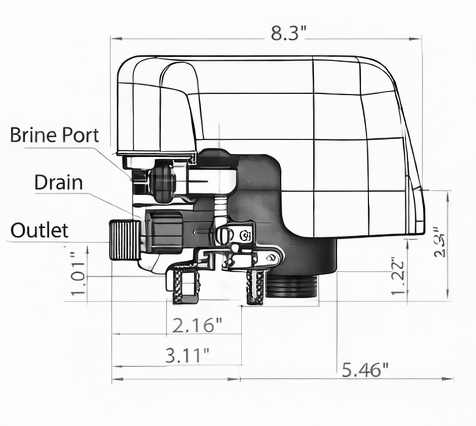

Valve Head Diagram
NSF/ANSI 44 Certified ✓ Built in U.S.A. RevV2.5 / 4.0 Valve

Carbon Pro Series Filtration System

Whole house chlorine and chemical removal — starting at the source.

★★ ★★ ★ 30 Reviews

Eliminate chlorine, chloramine, and harmful chemical compounds from every tap in your home with the RoyalSoft Carbon Pro Series. Featuring industry-trusted catalytic and activated carbon media, patented ceramic disc valves, and the advanced RevV2.5 / 4.0 control head, the Carbon Pro eliminated between 50–100+ different chemical compounds, depending on the water source. Schedule your free in-home water test and consultation to get started.

Schedule Free Water Consultation Call (845) 345-4452

Free in-home water test  ·  No up-sell pressure

The Carbon Pro Series effectively removes chlorine, chloramine, and organic and inorganic compounds from your entire home's water supply. Industry-trusted catalytic and activated carbon media targets the full spectrum of chemical contaminants — delivering measurably cleaner, fresher water at every fixture.

The patented RoyalSoft ceramic discs are diamond-hard — they won't wear out like traditional seals, spacers, and pistons. Corrosion and abrasion resistant, they ensure many years of worry-free operation with virtually no maintenance. Backed by a Lifetime Guarantee on wear parts.

The RevV 2.5 / 4.0 control valve offers 7 advanced programming options with fully adjustable cycles, minimizing water usage during backwash. Features a bright LCD display, long-term memory for program functions, and 72-hour power backup — no external PLC required to operate multiple control heads.

Product Details

Tap Into Best-in-Class Features

Catalytic & Activated Carbon Media
Industry-trusted media targets chlorine, chloramine, and a wide range of organic and inorganic chemical compounds at the whole house level — delivering noticeably cleaner, better-tasting water at every fixture, including showers, sinks, and appliances.
The patented RoyalSoft ceramic discs
Patented RoyalSoft ceramic discs are diamond-hard and corrosion-resistant, eliminating traditional wear parts entirely. The discs carry a Lifetime Guarantee — you'll never need to replace seals, spacers, or pistons.
Three System Sizes
Choose from three configurations (9×48, 10×54, 13×54) customized to your home's needs. Your Clean Water Pro expert will recommend the right fit based on your household size, water usage, and piping.
Optional Bypass
A built-in bypass option allows you to route water around the filter instantly when needed — no tools required. The optional In/Out valve adds further flexibility for service and maintenance.
Carbon Pro Series Filtration System
Technology

Advanced Filtration Options for Your Home

Four system sizes are available — each can be installed indoors or outdoors. Your local Clean Water Pro expert will make recommendations based on your home's water flow, chemical levels, household usage, and pipe size.

🌀

Co-Current & Countercurrent Modes

Available in co-current, countercurrent, and backwash configurations, the Carbon Pro adapts to your specific water chemistry and filtration needs — ensuring maximum media efficiency and system longevity.

💧

RevV2.5 / 4.0 Advanced Valve

Seven advanced programming options with fully adjustable backwash cycles. No external PLC required to operate multiple control heads or external devices. Signal output available.

🔋

72-Hour Memory Backup

Program settings remain in long-term memory even after a power outage. The 72-hour backup ensures your filtration schedule is never disrupted by a temporary power loss.

🌐

4 Language Support

The control valve interface supports English, Spanish, Chinese, and French — making the Carbon Pro accessible and easy to operate for any household.

🏆

NSF/ANSI 44 Certified Valve Component

The RevV control valve used in the Carbon Pro Series has been tested and certified by NSF International to NSF/ANSI Standard 44 for materials and structural integrity requirements — ensuring the highest standard of quality and safety in every system we install. Learn more about product certifications →

Ready to experience the difference?

Schedule a Free Water Consultation

Free in-home water test  ·  No obligation  ·  No up-sell pressure

Benefits

Why Choose the RoyalSoft Carbon Pro Filtration System

01

Chlorine-Free Water

Eliminate the harsh taste and odor of chlorine and chloramine from city and community water supplies in your home — not just your drinking water, but your showers, laundry, and cooking water too.

02

Protect Pipes & Appliances

Chemical contaminants accelerate wear on plumbing, fixtures, and appliances. Carbon filtration removes these compounds at the source — extending the life of your entire home's water system.

03

Better Taste & Odor

Dramatically improve the taste and smell of water throughout your home. Cleaner water means better coffee, better cooking, and noticeably fresher water from every fixture.

04

Whole House Filtration

With flow rates up to 20 gpm, the Carbon Pro delivers consistent filtration to every faucet, shower, and appliance simultaneously without ever having to compromise on water pressure.

Washing vegetables with clean, filtered water
Impact

Cleaner Water. Real Results.

Whole house carbon filtration removes chemical contaminants from every drop of water you use — protecting your health, your plumbing, and your household investments for years to come.

100+

Chemical compounds — including chlorine, chloramine, and organic contaminants — removed by catalytic and activated carbon media.

20 gpm

Maximum whole house service flow rate — delivering consistently filtered water to every fixture in your home simultaneously.

Lifetime

Guarantee on ceramic disc wear parts — the heart of the RevV control valve — so you'll never be caught off guard by repair costs.

Our Environmental Impact

♻️

Efficiency-First Engineering

The RevV2.5 / 4.0 valve's adjustable backwash cycles minimize water consumption with every regeneration — reducing environmental footprint over the full life of the system.

🌱

Chemical-Free Filtration

By removing chlorine and chemicals mechanically through carbon media — without adding any chemicals to your water — the Carbon Pro delivers clean results with zero chemical byproducts.

🌊

Global Water Stewardship

Clean Water Pro is committed to advancing responsible water treatment practices. The RoyalSoft's NSF/ANSI 44 certification ensures it meets stringent global standards for performance and safety.

System Size Activated Carbon Media Overall Height Flow Rate** Water Used/Backwash
9×481 cu. ft56″16 gpmYes
10×541.5 cu. ft60.3″18 gpmYes
13×543 cu. ft60.3″20 gpmYes

** Flow rate specification provided by media manufacturers

Control Valve

Transformer Input100–240 VAC / 50–60 Hz
Transformer Output12 VDC / 2A

Working Conditions

Water Pressure20–120 psi
Water Temperature35°F–125°F
pH Level7.5 ± 0.5
InletOutletDrainBrineBaseRiser TubeBypass
1″1″3/4 NPT 1/2″ Barbed3/8″2.5″–8NPSM32 mmYes
Valve MaterialTank MaterialValve Height from Top of TankMeter AccuracyClock
ABS PlasticFiberglass7″ / 180mm±5%12 or 24-hour

The Carbon Pro Series is built to last, with industry-leading warranties that protect your investment for the long term.

Warranty Coverage:

  • Ceramic discs (wear parts) — Lifetime Guarantee
  • Mineral tank (fiberglass construction) — 10 Years
  • Motherboard and motor parts — 5 Years
  • Entire system (labor and service) — 1 Year
Installation & Maintenance

Installation & Maintenance

Our unmatched, white-glove service doesn't stop at your free water test and consultation. Your local Clean Water Pro expert will be there to help for the entire life of your Carbon Pro system — assisting with installation, media replacement, and more.

⚡

Fast and Professional

Our expert team is ready to begin your installation in as little as one week. With efficiency and professionalism at the core of what we do, most installations are completed in under two hours — delivering fast, seamless results you can trust.

⭐

Years of Local Experience

With decades of water treatment experience serving Westchester, Putnam, and Dutchess County, you can count on us to provide the solutions and service you need anytime.

📍

Unwavering Local Support

Our team of experts knows your local water and is there to offer support and services right in your neighborhood. We're a local business — not a call center.

🔧

Flexible Installation Areas

Your system can be installed wherever you have access to main water piping and an electrical outlet — in the laundry room, basement, garage, or utility area.

What does the Carbon Pro filter remove from my water?

The Carbon Pro uses catalytic and activated carbon media to effectively remove chlorine, chloramine, and a wide range of organic and inorganic chemical compounds. The result is noticeably cleaner, better-tasting, and better-smelling water at every fixture throughout your home.

What's the difference between the Carbon Pro and a water softener?

A water softener removes hardness minerals (calcium and magnesium). The Carbon Pro removes chemical contaminants — chlorine, chloramine, and organic compounds — that affect taste, odor, and water quality. Many homes benefit from both systems, as they solve different water problems.

What's the difference between catalytic carbon and activated carbon?

Activated carbon removes chlorine and many organic compounds through adsorption. Catalytic carbon goes further — it has an enhanced surface structure that also removes chloramine, hydrogen sulfide, and other compounds that standard activated carbon struggles to address. The Carbon Pro uses both for comprehensive chemical removal.

How often does the carbon media need to be replaced?

Media lifespan depends on your water usage, chlorine levels, and the specific media installed. Your Clean Water Pro technician can monitor performance over time and advise when replacement is needed — typically every several years for most households.

Will the Carbon Pro help with the chlorine smell in my shower?

Yes. Because the Carbon Pro filters at the point of entry — where water enters your home — it removes chlorine and chloramine before water reaches any fixture, including showers. Most customers notice a dramatic improvement in water smell and feel almost immediately after installation.

Is the Carbon Pro suitable for well water?

While the Carbon Pro excels at removing chemical contaminants, well water often also contains iron, sulfur, and hardness minerals that require additional treatment. A free in-home water test from Clean Water Pro will identify all the issues in your water so we can recommend the right combination of solutions for your home.

How do I get started?

Fill out this form here and a certified water technician will schedule a free in-home water test. We'll analyze your water and recommend the right Carbon Pro configuration — with no obligation and no up-sell pressure.
